判斷可否使用循環功能。（適用產品：AZ系列）
The wrap function is a function to automatically preset the position information of the current position when the number of revolutions of the motor output shaft exceeds the set range.
30-Second Explanation of the Wrap Function Feature
This support tool allows customers to determine whether or not the wrap function can be used by inputting their conditions.
At the same time as determining whether or not the function can be used, it also calculates the setting values for the electronic gear and wrap setting range.
Use this section as a support tool when starting up equipment.

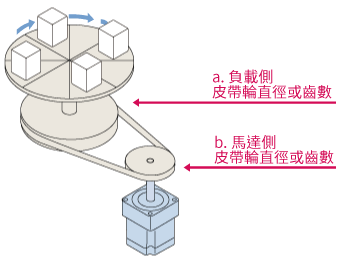

Determination by Mechanism (When performing wrap setting in the future)
Judgment From the Setting Value (If wrap setting is already set)
Values that Can be Set for the "Initial Coordinate Generation & Wrap Setting Range" Parameter
Value that can be set in the "Initial coordinate generation & wrap setting range" parameter is only divisors of "900" or "1,800" in the following table. If input other value different from the below table value, the wrap setting error alarm will be triggered.
*The value that is highlighted in bold cannot be set if the motor frame size is 30 mm max.
Setting Conditions for "Initial Coordinate Generation & Wrap Setting Range" Parameter
Wrap setting range must meet the following conditions.
Setting value of electronic gears and wrap setting range
| Electronic gear A | 1~65,535 |
|---|---|
| Electronic gear B | 1~65,535 |
| Motor Output Shaft Resolution | 100~10,000 |
| Wrap Setting Range [rev] | 0.5~1,800.0 |
*Wrap setting range is rounded to 1st decimal place.
(0.5~900 for motor frame sizes of 30 mm max.)
Setting Range of Parameters for the AZ Series
| Motor Output Shaft Resolution | 100~10,000 |
|---|
