最短定位時間計算（對應電動模組產品）

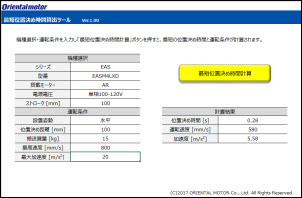

For applicable products within Oriental Motor's range of electric actuators, the approximate positioning time can be calculated according to "model" and "operation conditions." This can be used as a support tool when selecting products.
Please download and use the Excel data.
NoticeNote
- ・The selection results are based on calculations carried out to ensure operation within specifications. Please use this as a reference when selecting products.
- ・This tool works with Excel macros. If you see a security warning displayed, select enable.
Download
| Tool Name | Applicable Product | |
|---|---|---|
| Calculation of the Shortest Positioning Time (XLS: 1.4 MB) |
Electric Linear Slides | EAS Series αSTEP AR Series/AZ Series Equipped EZS Series αSTEP AR Series/AZ Series Equipped EZSH Series αSTEP AR Series/AZ Series Equipped |
| Electric Cylinders | EAC Series αSTEP AR Series/AZ Series Equipped | |
| DR Series αSTEP AZ Series/PKP Series Equipped DRS2 Series STEP AZ Series Equipped |
||
| Rack-and-Pinion System | L Series αSTEP AZ Series Equipped | |
Recommended Operating Environment
The following environments are recommended for use.
| OS | Windows 10 or later |
|---|---|
| Spreadsheet Program | Microsoft Excel 2003 or later |
*If you cannot use a product due to your operating environment, please contact our Customer Support Center.
